Leading Motion Control: M PLC Industry Applications and Case Guide
Leading Motion Control: M PLC Industry Applications and Case Guide
Integrating Multi-Axis Linkage and High-Dimensional Interpolation Algorithms, a Smart Control Heart Custom-Built for High-Speed, Precision Industrial Equipment
Breaking Limits: Core Motion Control Specifications of M PLC
FATEK M PLC features a built-in high-speed computing core, achieving the following ultimate precision control performance without the need for expensive external axis control positioning cards.
24-Axis Multi-Axis Control High-real-time EtherCAT communication control supports up to 24 axes of high-speed, high-real-time scheduling, eliminating cumulative time tolerances in multi-station linkage. | 16-Axis Precision Cam Built-in high-end electronic cam algorithms integrate 16-axis synchronous linkage, rapidly executing dynamic curve compensation for flying shears and chasing shears without stopping. | High-Dimensional Trajectory Interpolation Perfectly supports high-precision trajectory interpolation including multi-dimensional linear, high-precision circular, and spatial helical paths, maintaining constant dispensing and cutting linear speeds. |
Multi-Axis Linkage and High-Difficulty Interpolation Practice: Safeguarding Everyday Essentials
From exquisite clothing, delicious baking, smart homes to intelligent travel, motion control connects seamlessly with daily life
[Transportation] Circular Interpolation Mobile Phone SIM Card Production LineFunctional Application: Precisely controls the milling cutter trajectory to perform micron-level continuous circular groove milling and dispensing for SIM card slots. Application Advantages: Prevents cumulative tolerances at interpolation corners, effectively pushing high-frequency patch packaging yield rates to the limit. |  |

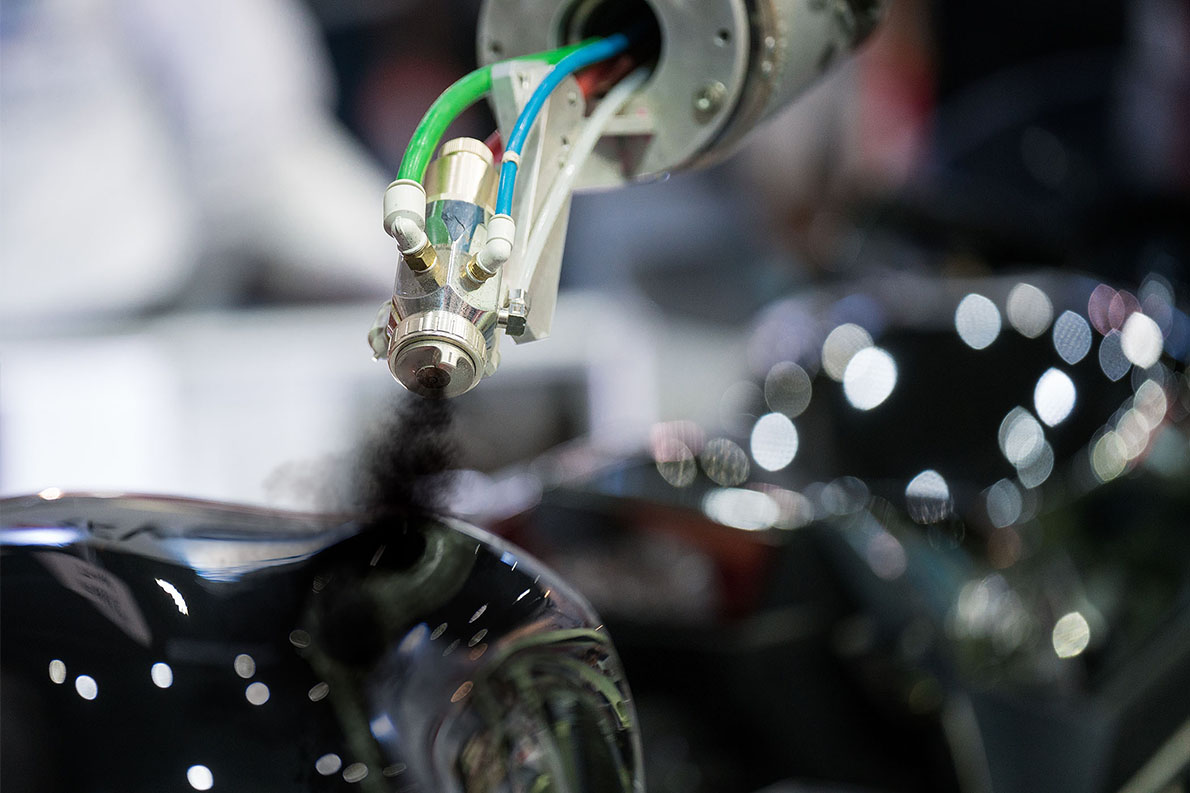

 | [Transportation] 3D Helical Interpolation Automotive Parts SprayingFunctional Application: Precisely controls 3D multi-axis spraying robotic arms, guiding the spray gun nozzle along perfect helical path envelopes on spatially irregular surfaces such as automotive rearview mirrors, door handles, and interior dashboards. Application Advantages: Constant tangential speed calculation ensures smooth, uniform coating thickness, eliminating color differences or wrinkling defects. |

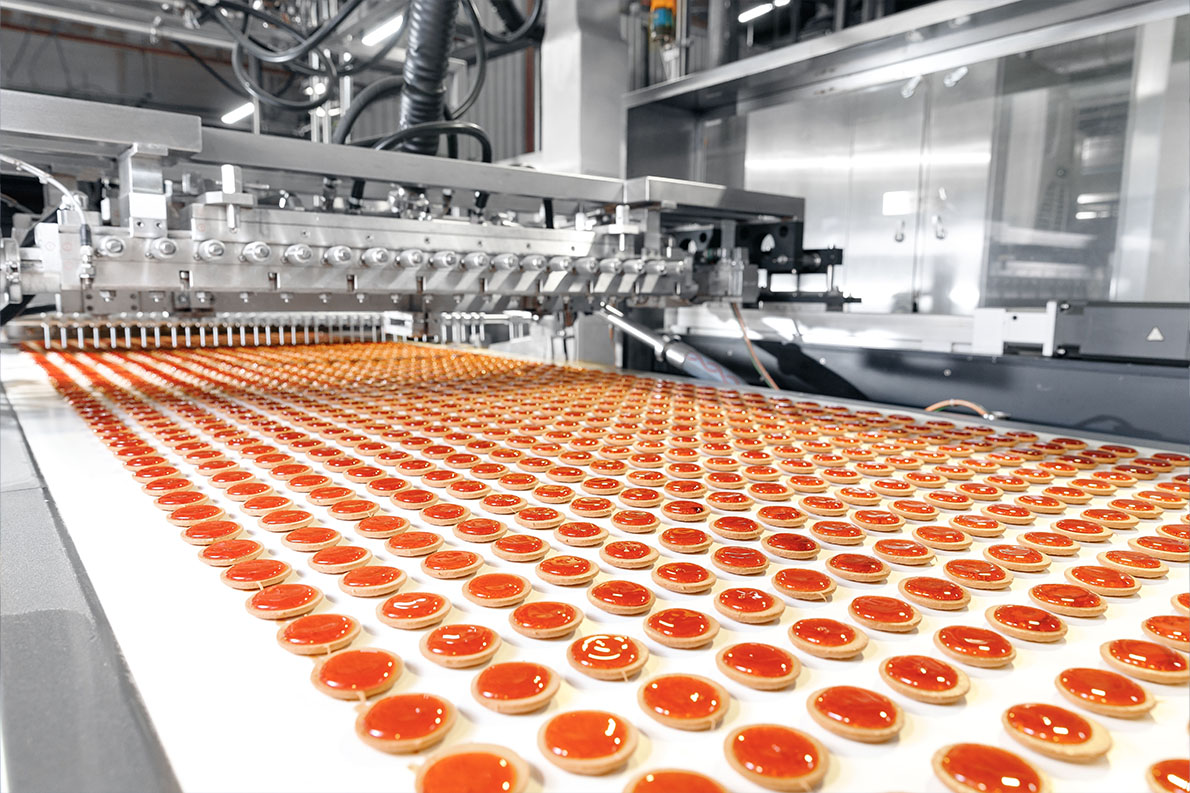

[Food] Multi-Axis High-Speed Alignment Automated Food & Bakery Production LineFunctional Application: Highly synchronized multi-axis control precisely manages continuous feeding and quantitative cutting of large dough batches, high-precision tray arrangement, and high-speed tracking alignment with injection modules for uninterrupted operation. Application Advantages: Ensures uniform baking appearance without compression or deformation, perfectly guaranteeing the safety and standard quality of dining table food. |  |

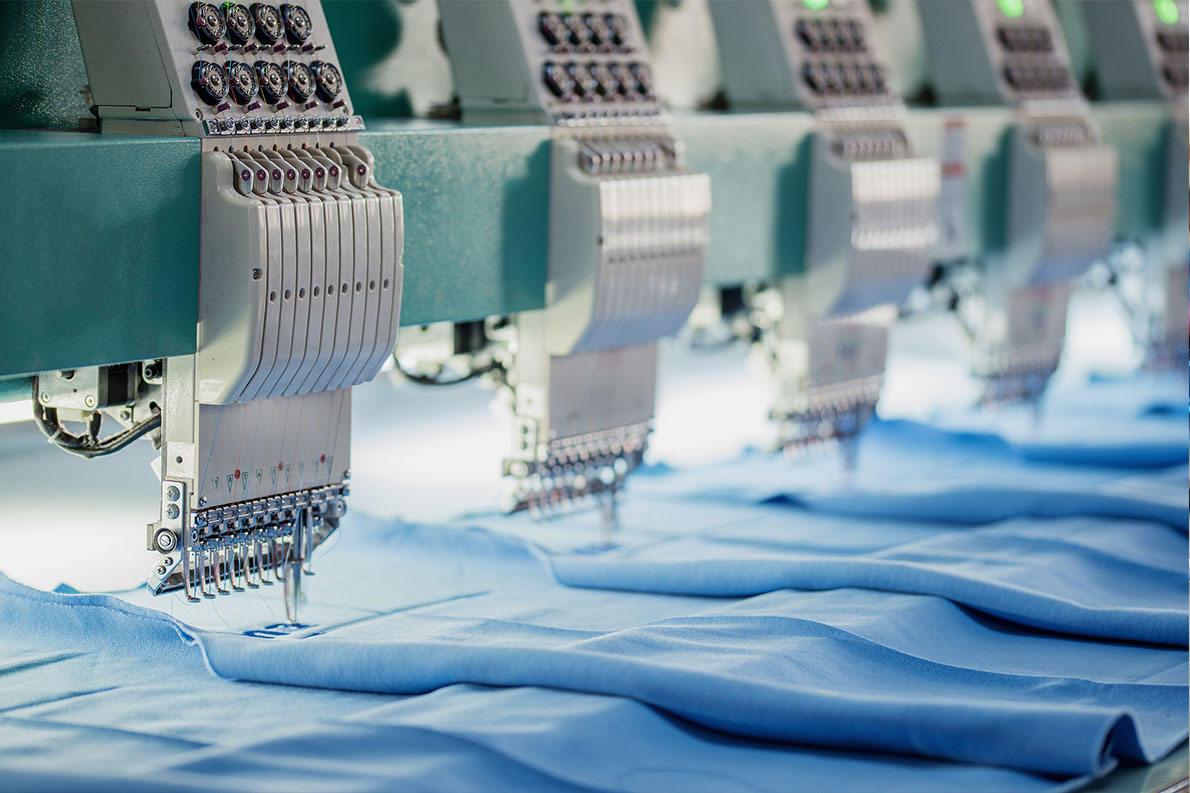

 | [Clothing] Precision Trajectory High-Precision Industrial Sewing EquipmentFunctional Application: Guides sewing needles and presser feet to execute high-speed, continuous, high-precision circular and specially-shaped geometric pattern trajectory stitching on heavy leather, airbags, and specialized apparel fabrics. Application Advantages: Provides uniform stitching trajectories, prevents fabric wrinkling caused by tension stretching, and delivers high seam neatness, perfectly suiting mid-to-high-end brand apparel and automotive leather seat decorations. |
[General Industry Comprehensive Application Video] M PLC Actual Working Conditions and Multi-Axis Synchronous Equipment Demonstration
The Perfect Application of Cams in Production Line Chasing Shear Systems
Maximizing Dynamic Compensation of Electronic Cams to Reshape Production Speeds Closely Tied to People's Livelihoods

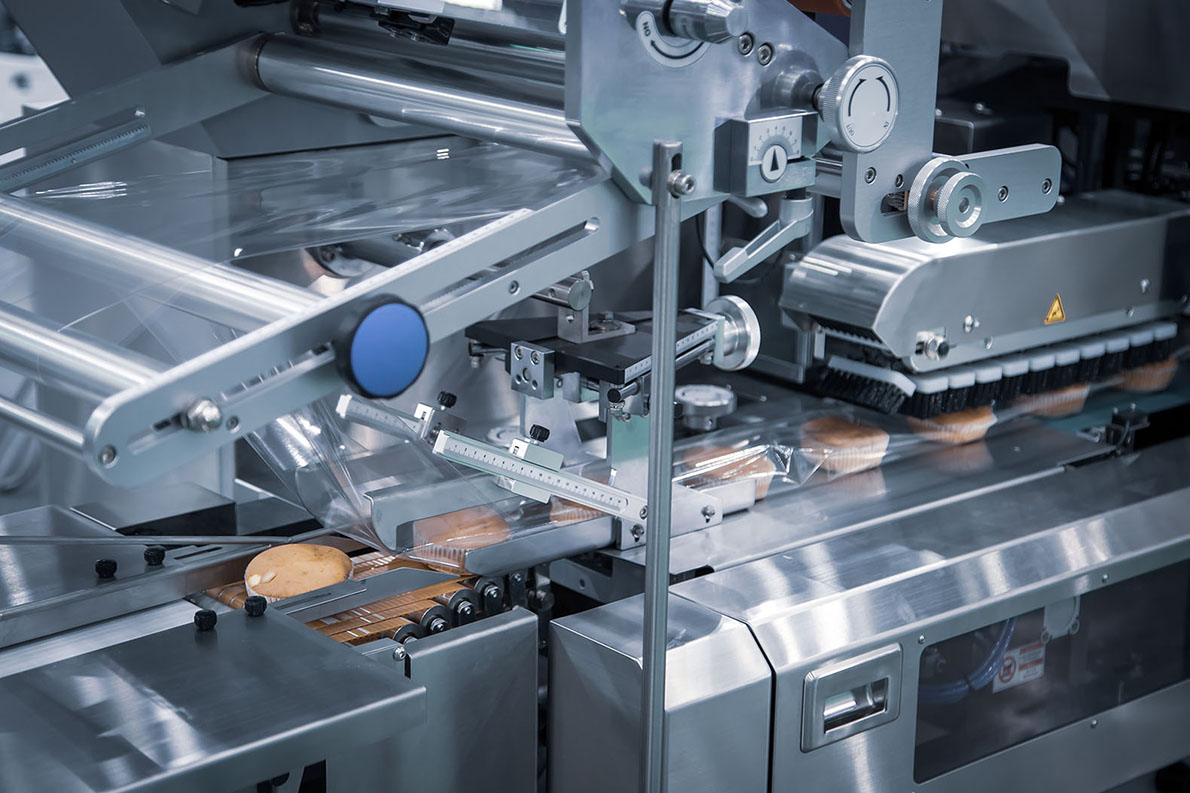

[Food] High-Speed Flying Shear Cross-Cutting High-Speed Food Packaging MachineFunctional Application: Based on high-end electronic cam (E-CAM) synchronous tracking, it cooperates with the feeding master axis position and rotary knife roller to execute extreme phase cutting and sealing of food packaging bags. Application Advantages: Millisecond-level dynamic compensation under high-frequency operation ensures packaging material is not stretched. The sealing is extremely tight and leak-free, 100% locking in the original freshness of snacks and pastries. |  |
 | [Housing] Multi-Gear Phase Coupling Home Logistics Carton Printing Slotting MachineFunctional Application: Precisely coordinates the electronic gearing and virtual master axis synchronous chasing shear engagement among the paper feeding roller axis, multi-color ink rollers, and slotting knife holder axis. Application Advantages: High-speed multi-color registration printing ensures clear textures without ghosting, and precise slotting dimensions guarantee the packaging protection performance of large household appliances and furniture during long-distance logistics transportation. |

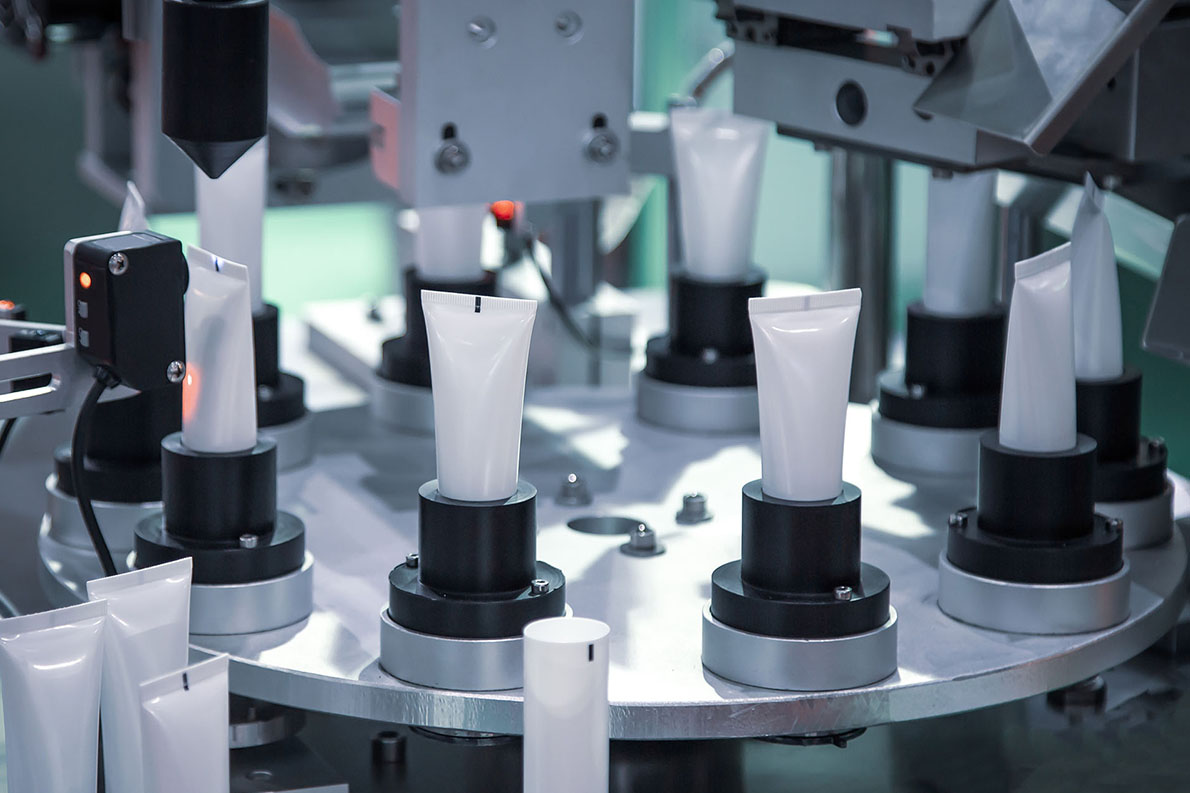

[Housing] Registration Mark Dynamic Chasing Shear Toothpaste Filling Production LineFunctional Application: High-speed dynamic alignment with micron-level printed registration marks on toothpaste and facial cleanser tube packaging, instantaneously synchronizing quantitative high-precision paste injection and thermal sealing/tail cutting. Application Advantages: Precisely locks onto the cutting baseline within milliseconds, preventing any material overflow, and producing flat, neat thermal-pressed tail patterns, significantly improving packaging yield rates for major cosmetics and bathroom consumer goods manufacturers. |  |

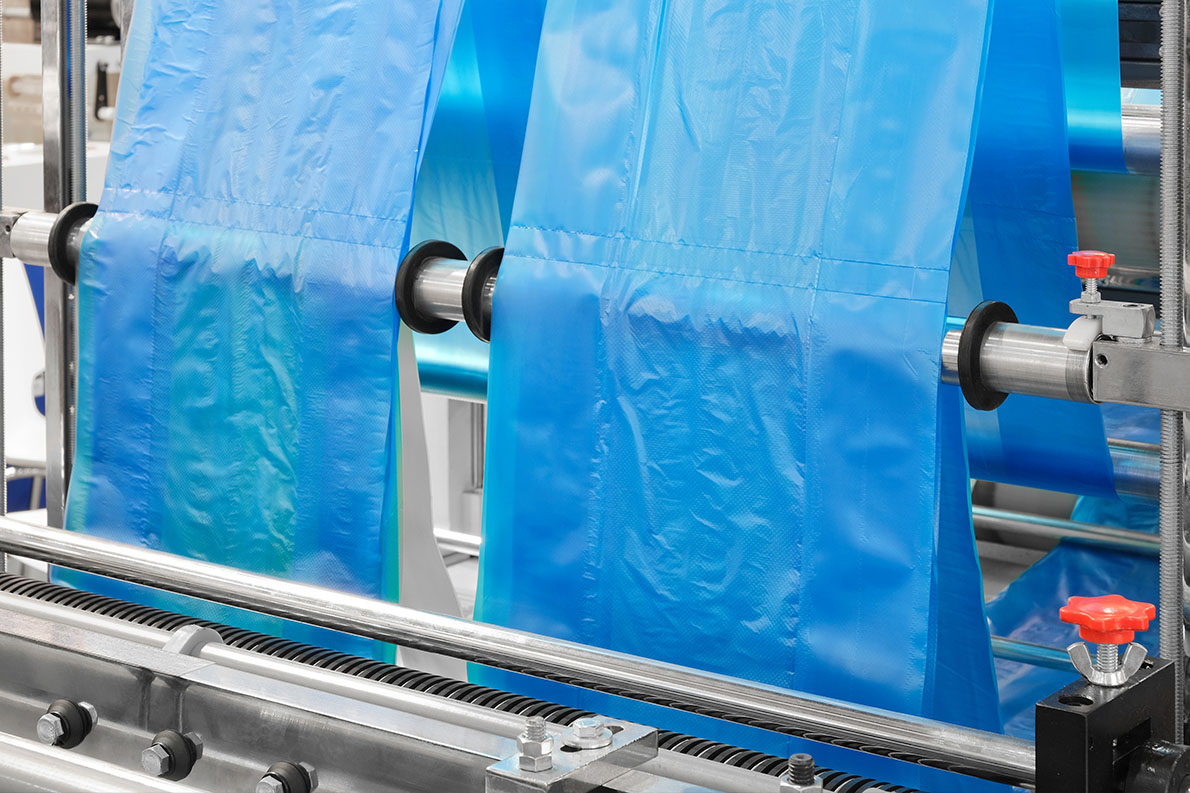

 | [Clothing] Multi-Axis High-Speed Flying Shear Apparel Dust Bag Making MachineFunctional Application: Driven by high-speed cam curves, it controls hot-cutting heads or ultrasonic fixtures to achieve ultimate material-pulling phase matching and cutting with the feeding roller encoder. Application Advantages: Thoroughly eliminates cumulative cutting errors caused by tension pulling during feeding, manufacturing dust-proof and moisture-proof apparel storage bags and shopping bags with extremely high heat-seal line strength. |
[Cam Case Video] Dynamic Linkage of Multi-Axis Chasing Shear and Flying Shear
Unlock Infinite Kinetic Energy with FATEK, Powering Smart Craftsmanship Transformation
Self-developed core technology, providing perfect integration. FATEK M PLC offers high-standard integrated motion control solutions for your precision machinery. We will continue to cultivate core industries such as packaging, metalworking, and automated assembly, providing highly compatible, low-communication-latency, and easy-to-develop hardware and software motion control suites. Whether you require complex multi-axis high-speed linkage, electronic cam chasing shears, or highly challenging 3D helical interpolation, FATEK M PLC remains your most trusted cornerstone for safeguarding precision, improving yield rates, and exceeding production capacity targets.
*To learn more about our equipment configurations and complete achievements across various industries, please read further via the links below.
