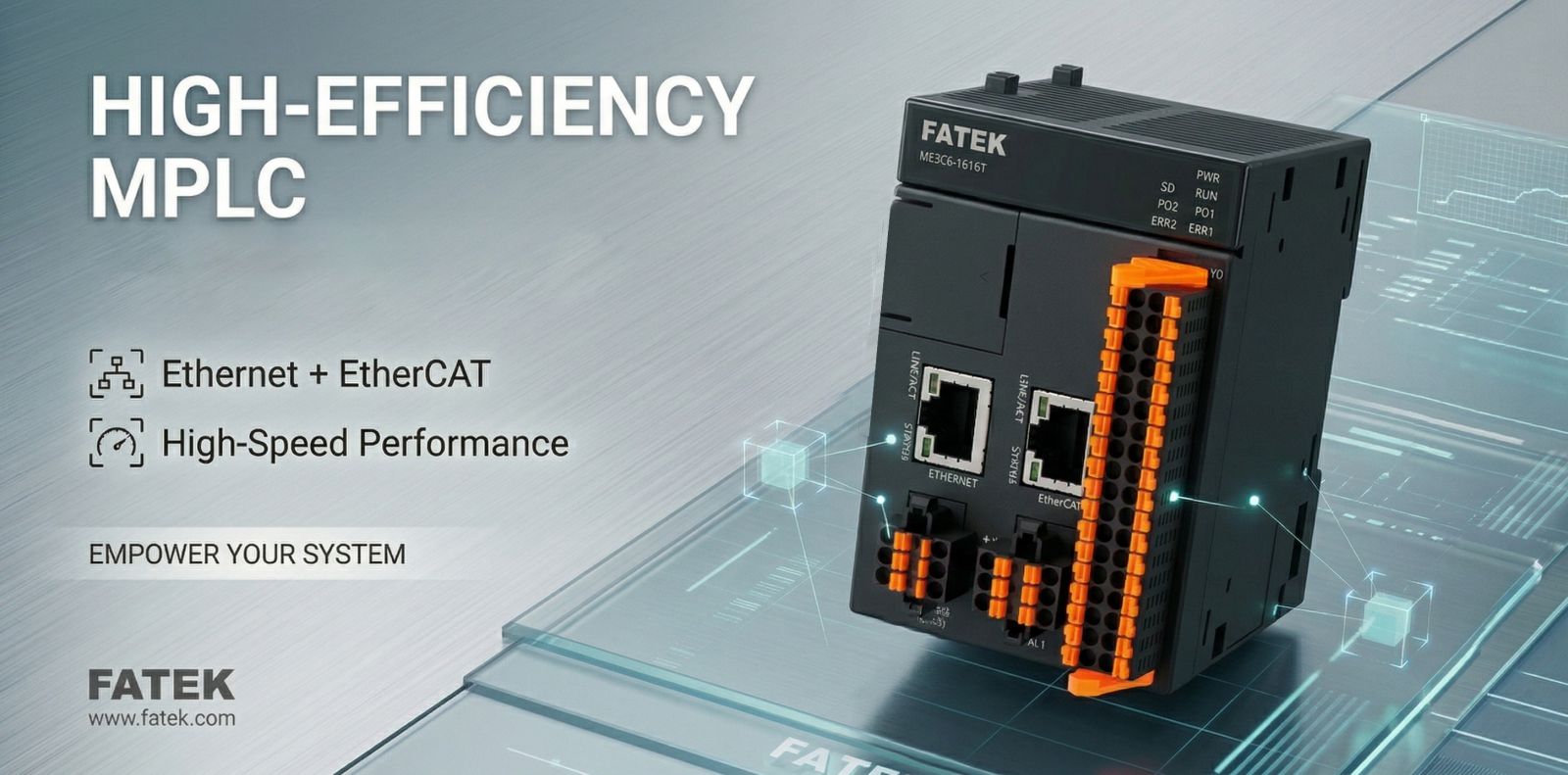

Hardcore Integration: FATEK MPLC High-Efficiency All-in-One Main Unit
Hardcore Integration: FATEK MPLC
High-Capacity All-in-One Flagship Core
In the era of industrial automation that pursues space utilization and cost-effectiveness, the "high-capacity and efficiency" of a controller means that a single main unit can cover the core needs of most small and medium-sized projects. Relying on an extremely highly integrated hardware design, FATEK MPLC has built a complete ecosystem within a single main unit, covering motion control, analog processing, industrial communication, and IoT.
1. The Main Unit is the Core: No Expansion Needed, All-Around Configuration
Through high-density functional integration, the MPLC main unit significantly reduces user reliance on external expansion modules, making the design and wiring of small projects extremely simple:
Comprehensive Motion Control Engine
Built-in 1-channel EtherCAT interface, supporting up to 16-axis servo control on a single unit.
Supports linear, circular, and helical interpolation, as well as 16-axis electronic cams (E-CAM), easily handling complex trajectories.
Comes with 8-channel 200k high-speed output, compatible with various stepper and servo drives.
Precision Signal Processing and I/O
The main unit features 2 built-in analog channels, capable of processing voltage/current signals without purchasing extra expansion modules.
Comes with 32 points of DIO, fully satisfying the logic control point requirements for small and medium-sized equipment.
Multi-Dimensional Communication Interaction
Built-in 1-channel Ethernet interface, enabling high-speed data interaction and host computer networking.
Built-in 2-channel RS485 serial ports, perfectly compatible with the communication of various traditional instruments and inverters.
2. Smart Management and Data Security
In addition to powerful control capabilities, the MPLC main unit also empowers projects with digital vitality:
IoT Remote Monitoring
Supports IoT functions, allowing users to remotely monitor project operation data in real-time, achieving true cloud operations and fault warnings.
Micro-SD Memory Card Slot
Supports two-way backup and restoration of projects and data, featuring powerful data collection functions to ensure core assets are foolproof.
3. Core Benefits Brought by High Capacity and Efficiency
Extremely Low Total Project Cost
Motion control, analog, and multi-channel communication are all built into the main unit. Users do not need to purchase expensive expansion modules, significantly reducing hardware procurement costs.
Smaller Electrical Control Space
The highly integrated design significantly reduces the volume requirements of the electrical control cabinet, making the internal space layout of the equipment more compact and elegant.
Plug-and-Play Deployment Speed
Full coverage of main unit functions means less wiring work and simpler configuration processes, greatly shortening the cycle from design to delivery.
By pushing hardware functions to their absolute limits, the FATEK MPLC high-capacity main unit integrates all the core capabilities required by future factories within a minimal footprint. It is your ideal choice for reducing integration difficulty and enhancing project efficiency.
在追求空間利用率與成本效益的工業自動化時代，控制器的「高容效」意味著單台主機即可覆蓋絕大多數中小型項目的核心需求。FATEK MPLC 憑藉極高整合的硬體設計，在單一主機內構建了涵蓋運動控制、類比量處理、工業通訊與物聯網的完整生態。.png)
主機即核心：無需擴充，全能配置
MPLC 主機透過高密度的功能整合，大幅減少了用戶對外部擴充模組的依賴，讓小型項目的設計與佈線變得極致簡單：
全方位的運動控制引擎：
EtherCAT 總線控制： 內建 1ch 的 EtherCAT 介面，單機即可支持多達 16 軸伺服控制。
高階演算法支持：
支持直線插補、圓弧插補、螺旋插補以及 16 軸電子凸輪 (E-CAM) 控制，輕鬆應對複雜軌跡需求。
伺服脈衝輸出：
自帶 8ch 200k 的高速伺服脈衝輸出，同樣支持直線與圓弧插補，相容各類步進與伺服驅動器。
精密的訊號處理與 I/O：
內建類比量 (Analog)： 主機內建 2ch 類比量通道，無需額外購買擴充模組即可處理電壓/電流訊號。
充沛的數位量 (Digital)： 自帶 32 點 DIO，充分滿足中小型設備所需的邏輯控制點數。
多維度的通訊交互：
主流網路支持： 內建 1ch 乙太網路 (Ethernet) 介面，實現高速資料交互與上位機聯網。
傳統總線保留： 內建 2ch 的 RS485 序列埠，相容各類儀表與變頻器通訊。
智慧管理與資料安全
除了強大的控制能力，MPLC 主機更賦予了項目數位化的生命力：
IoT 遠端監控：
支持物聯網功能，用戶可遠端即時監控項目運行資料，實現真正的雲端運維。
Micro-SD 記憶卡槽：
支持專案與資料的雙向備份與還原，並具備強大的資料收集功能，確保核心資產萬無一失。
高容效帶來的核心好處
M PLC 的高效率不僅是數字的領先，更是實際生產力的飛躍：
極低的項目總成本：
由於運動控制、類比量與多路通訊均由主機內建，用戶無需採購昂貴的擴充模組，顯著降低硬體採購成本。
更小的電控空間：
高度整合的設計縮減了電控櫃的體積，讓設備設計更加緊湊精美。
即插即用的部署速度：
主機功能全覆蓋意味著更少的配線工作與更簡單的配置流程，縮短了從設計到交付的週期。
