Backmount PLC and HMI Module Expansion
Early PLCs and HMIs were like "stacking blocks" in cramped cabinets—space-consuming and wiring-complex. The Backmount PLC and HMI Module Expansion Solution balances functional expansion with spatial efficiency through integrated design, offering a flexible and reliable upgrade path for industrial control.

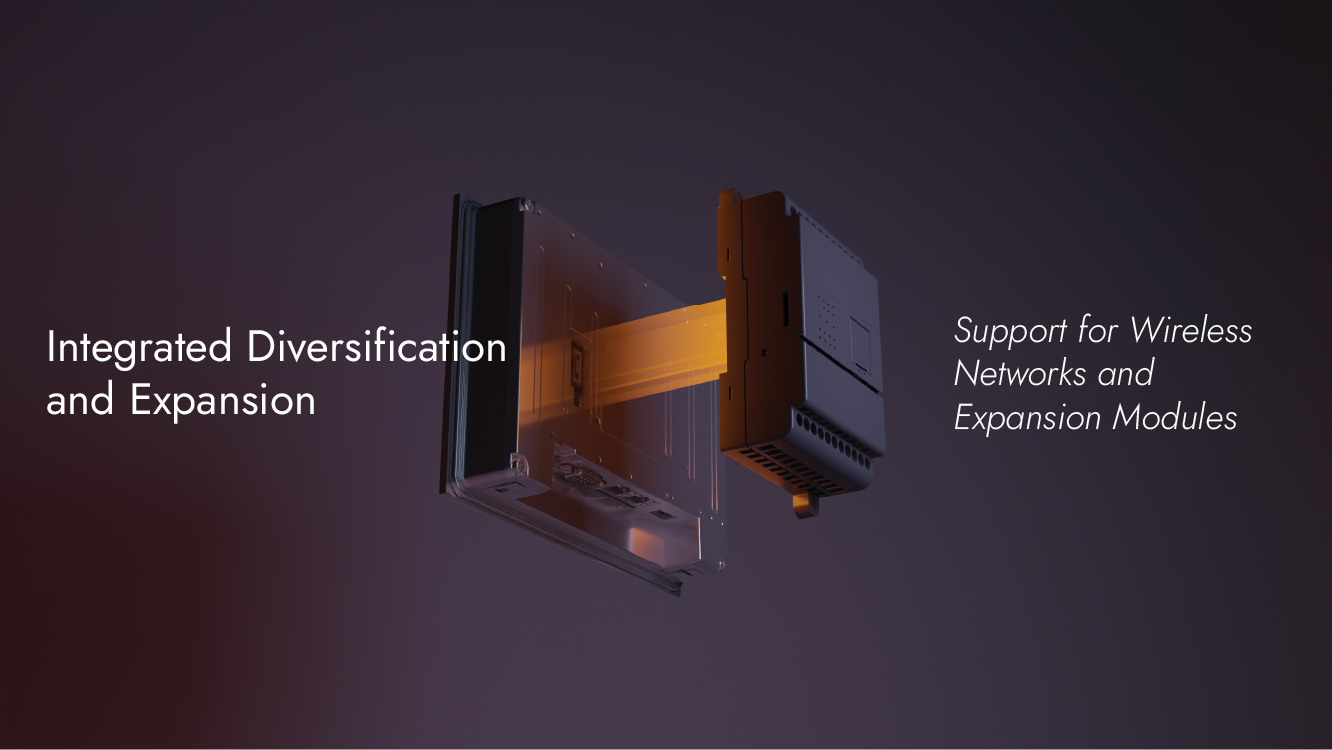

A backplane mounting structure integrates PLC, HMI, and expansion modules on a single plane. All components connect via internal bus links, eliminating external cables or brackets. Adding new modules simply requires slotting units into reserved backplane positions, keeping the system’s overall dimensions unchanged—ideal for space-constrained cabinets or mobile setups.
.png)
The backplane integrates power and signal channels, removing interference risks from traditional external wiring. All modules connect via standardized interfaces, reducing wiring errors and contact failure risks. System stability leaps forward, even in harsh environments with vibration or dust.
.png)
If a module fails, unplug and replace it directly from the backplane. Operators can view PLC logic and monitor real-time status via the HMI. Combined with status indicators and self-diagnostic functions, fault modules are pinpointed swiftly, minimizing production downtime.
.png)
The Backmount PLC and HMI Module Expansion Solution prioritizes compactness, flexibility, and reliability. By integrating program download and monitoring into the HMI, reliance on external tools drops, boosting operational transparency and response speed. From compact devices to complex production lines, achieve more functionality with less space and simpler operations—unlocking limitless potential within finite boundaries.
