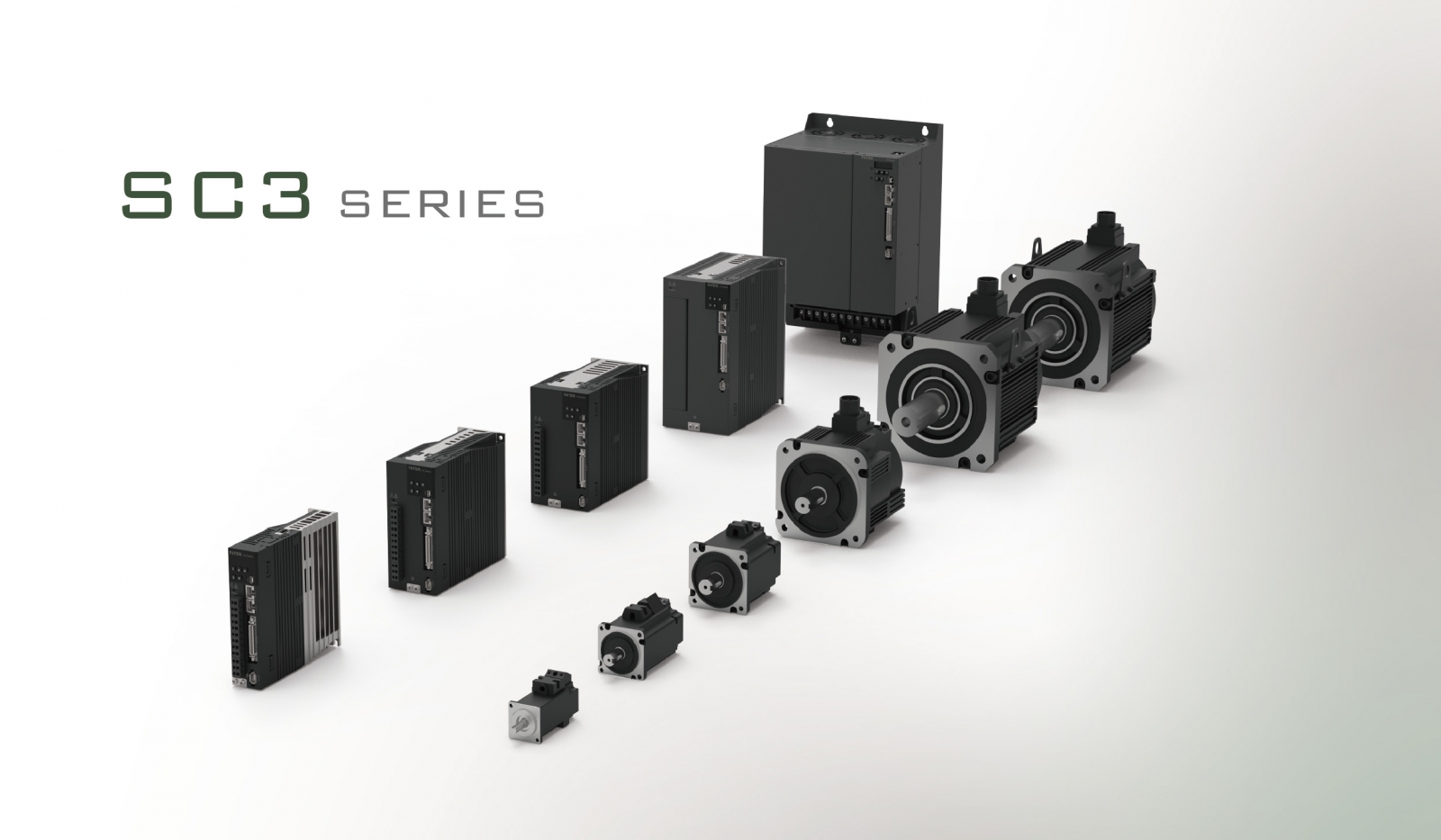

SC3 servo_Servo_Products | FATEK AUTOMATION CORP.

EtherCAT and Pulse control

Based on the EtherCAT communication and Pulse control, the SC3 series products have
the fastest synchronization cycle of 125us, which meets the requirements of
high-speed and high-precision control

100 W - 15 KW Full Line Supply

The product supports a full power range from 100W to 15kW, capable of meeting
the diverse power requirements across different application scenarios.

3.1 kHz Frequency Response

►Higher responsiveness and shorter settling time
►Improve machine production efficiency

23bit Absolute Encoder

► Single turn resolution up to 8388608 p/r
► Achieve more precise and smooth processing tasks
► Position information can be saved when power off
► 17 Bit is available

Auto-Adjustment

►Use the auto-adjustment function to easily auto-tune and
realize fast and stable operation
►No need to be proficient in servo tuning
►Even if the load changes during operation, the system can operate stably

Auto-Tuning

►Auto-Tuning algorithm will recognize the load inertia change
in real time, automatically adjusts the gain parameters,
and sets the vibration suppression and notch frequency.
►Debugging cycle can be shortened, the system response
performance and the equipment production efficiency are improved

Friction/Backlash Compensation

►Effectively reduce commutation deviation and improve machining accuracy	Before Compensation
►Improve the stability when operating at low speed	After Compensation

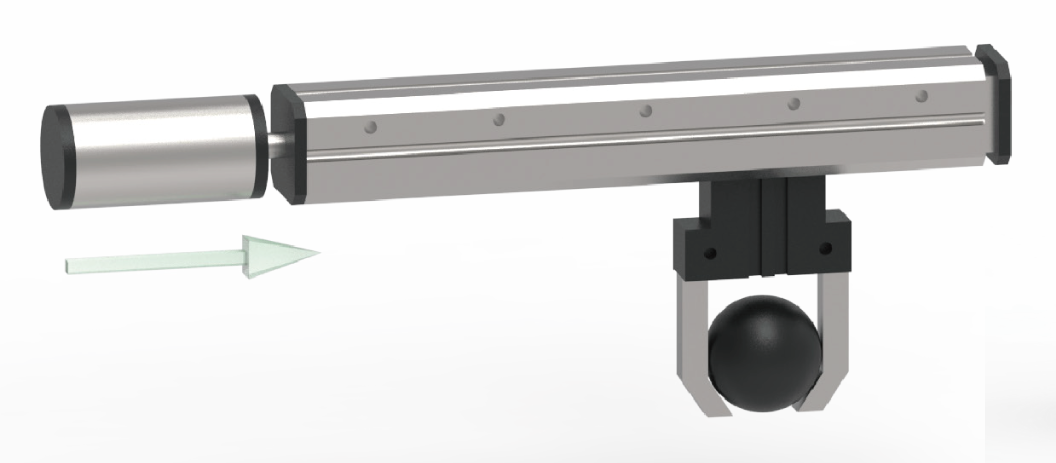

Dynamic Braking

Short-circuit the electrodes in an emergency, and stop at the fastest speed,
thereby protecting the safety of people and equipment

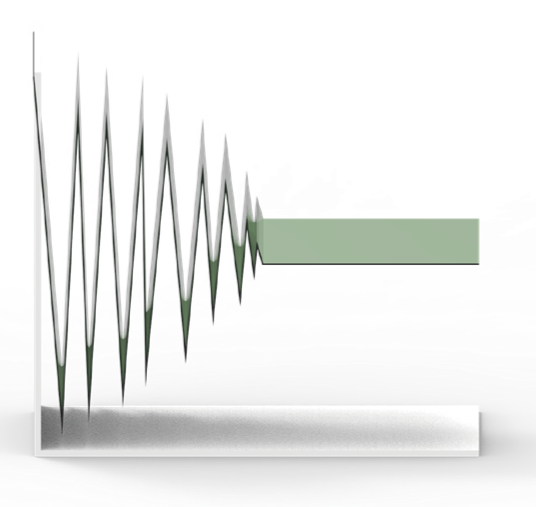

Vibration suppression

►Built-in 5 notch filters
►Suppress high-frequency vibration

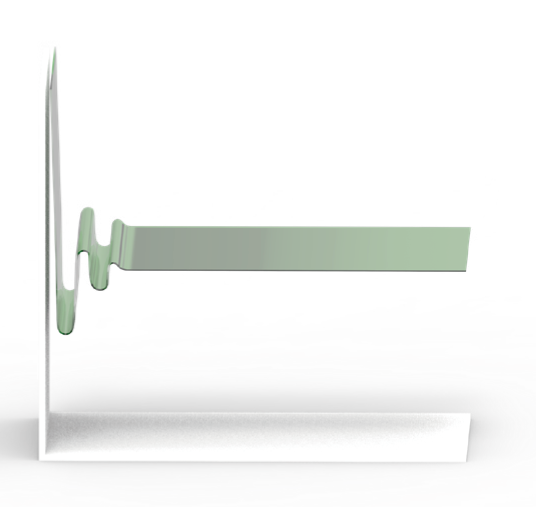

► Strengthen the end vibration suppression function, effectively suppress the mechanical end vibration ► Suppress low frequency vibration

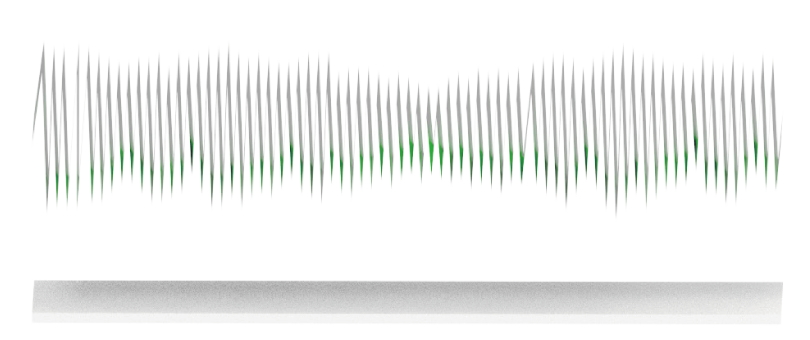

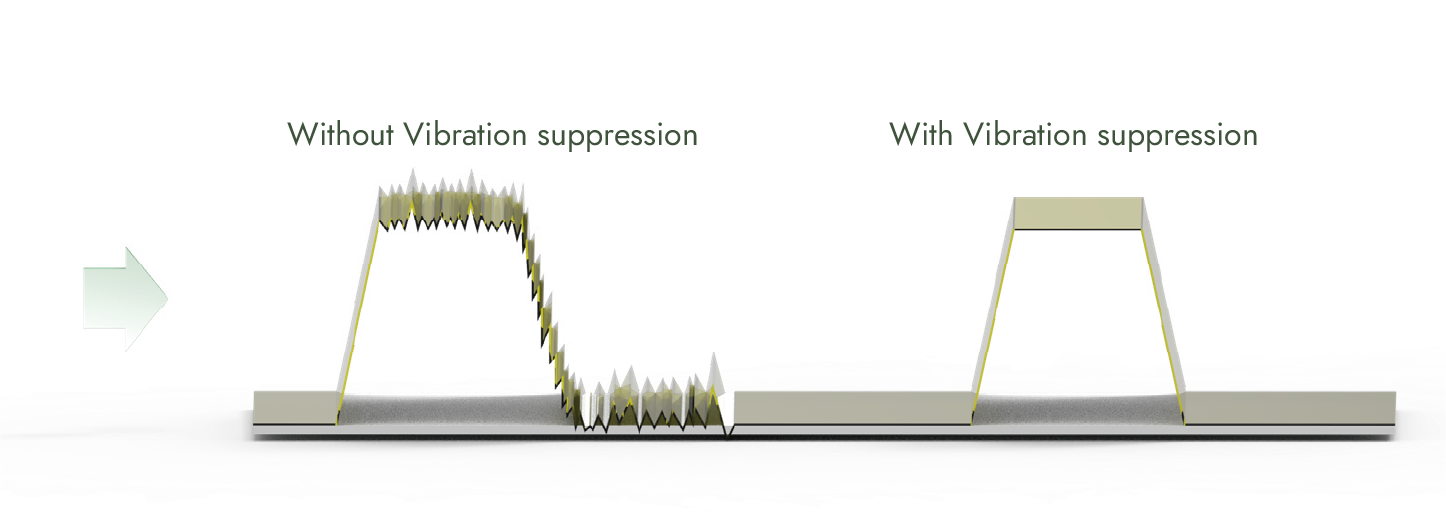

Without Vibration suppression
With Vibration suppression

For more detailed information, click to download the catalog
