New Energy Charging Pile Solutions
| 01 | |

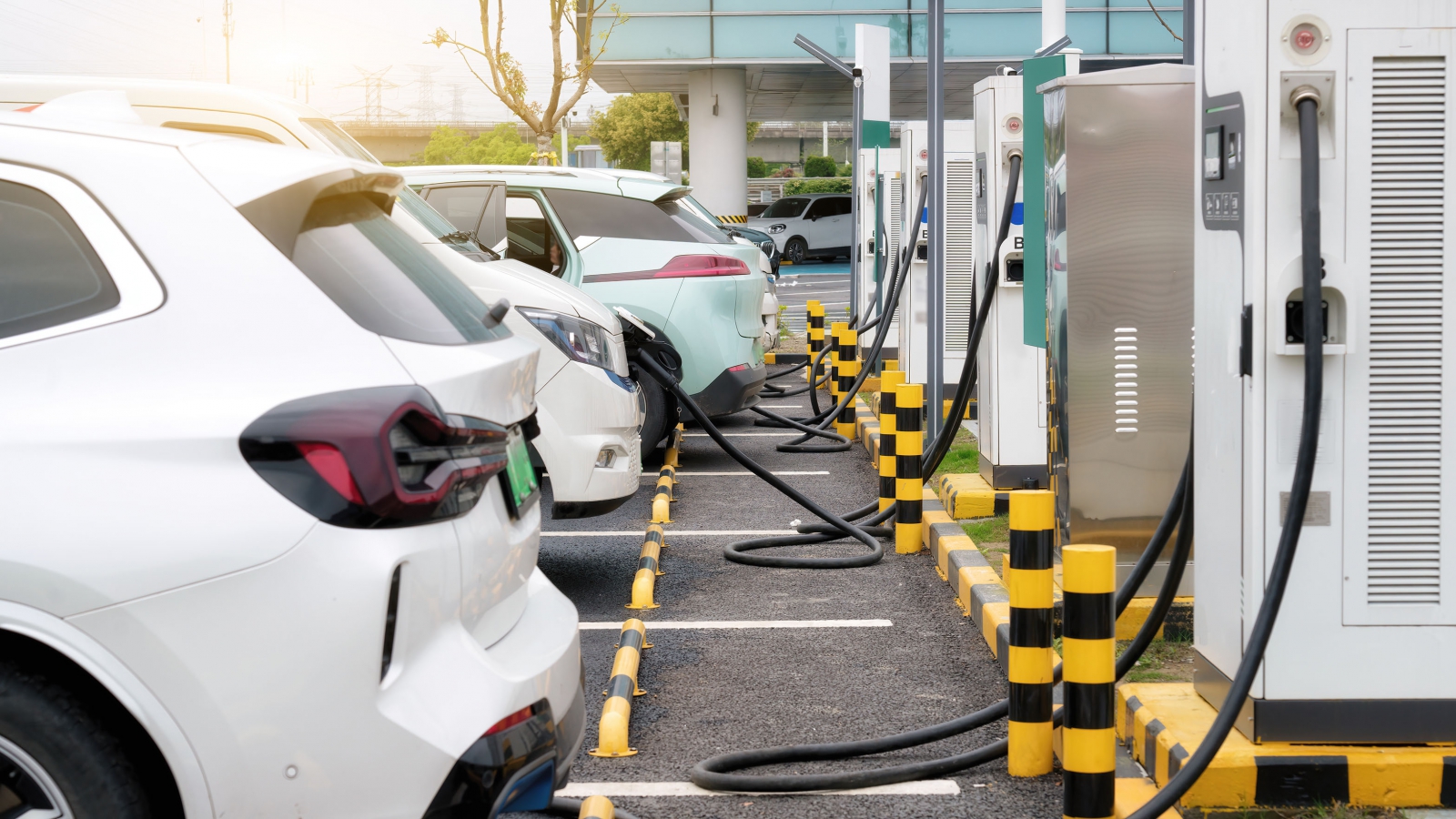

| Project Background With the global energy structure transformation and the advancement of carbon neutrality goals, new energy vehicles (such as pure electric vehicles, plug-in hybrid vehicles, etc.), as the core carriers of green transportation, are experiencing explosive growth. As a critical infrastructure for the development of the new energy vehicle industry, the popularization and technological upgrading of charging piles directly impact user experience, industry efficiency, and the coordinated development of the energy system. | |
 | |
| 02 | |
| Efficient and Reliable Professional Solution | |
| The New Energy Charging Pile Intelligent Monitoring System uses the P5B series industrial touch panel as the main control device, establishing a stable communication connection with the charging pile meter via the MODBUS RTU protocol to achieve precise collection and management of power data. The system automatically collects meter KWh energy consumption data every minute and transmits the data to USB via iAccess and MQTT, creating one folder per day and one CSV file per hour from HMI → PC computer, while automatically creating categorized folders by date to ensure standardized and orderly data storage. The system integrates the iAccess remote monitoring function, supporting real-time viewing of the HMI interface via mobile APP or PC, enabling operators to grasp the operating status of charging piles anytime. The P5B touch panel adopts an industrial-grade design with strong anti-interference capability and stable operating performance, ensuring continuous and reliable operation in complex environments. The system supports customizable data collection frequency and storage cycles and features abnormal data alerts, providing comprehensive data support for charging pile operation management. This solution achieves automated collection, standardized storage, and visual monitoring of charging pile energy consumption data, effectively improving the management efficiency and operational level of charging facilities. Through accurate energy consumption data analysis, operators can optimize charging strategies, improve equipment utilization, and provide a reliable basis for subsequent energy management and cost accounting. The system is compatible with mainstream brand charging pile equipment, offering simple installation and maintenance, making it an ideal choice for the intelligent upgrade of new energy charging stations. | |
 |
| 03 | |
| FATEK Makes You Stand Out ► Real-time Monitoring, Efficient Management After device networking, users can obtain PLC/HMI data in real-time, monitor the status of multiple devices simultaneously, and receive abnormal alarms, ensuring issues are addressed promptly. ► Global Remote Maintenance, Reducing O&M Costs Even if devices are located overseas, maintenance personnel can remotely connect via iAccess to update programs and troubleshoot faults without on-site operations, significantly saving travel and time costs. ► Seamless Integration of HMI & PLC Supports FATEK HMI Passthrough function, allowing users to directly operate the HMI interface remotely, monitor PLC data, and update programs without affecting normal device operation. | |
| ► Secure and Reliable, Plug-and-Play Uses TLS/SSL encryption to prevent data leakage and malicious attacks, while requiring no complex network settings, enabling simple and quick deployment. ► Lightweight, Efficient, Stable Transmission Based on the MQTT protocol with low bandwidth consumption, supporting QoS mechanisms to ensure critical data is not lost, suitable for industrial automation, energy management, and other scenarios. FATEK IoT provides secure, intelligent, and low-cost remote monitoring and maintenance solutions, helping enterprises enhance operational efficiency and achieve intelligent management. | |
| 04 | |
| FATEK Products Selected in the Solution |
